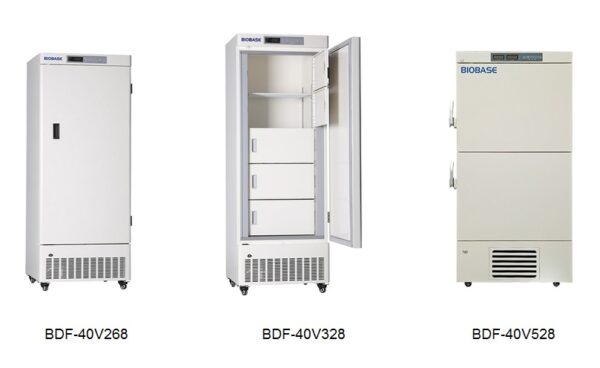

-40 °C Vertical Freezer BDF-40V268/328/528 Series

Deep freezer manual series products are applied to places needing storage at constant temperature, such as hospitals, epidemic prevention stations, blood banks, scientific research institutions, colleges and universities, biological pharmacies, genetic engineering, entrepreneurs, etc. The storing temperature in the body can set by the temperature button on the control panel. The application is convenient and the performance is reliable.

Category:


Inquiry

Technical Parameters

Model BDF-40V268 BDF-40V328 BDF-40V528
External Size(W*D*H) 673*676*1630mm 673*676*1886mm 900*819*1828mm
Internal Size(W*D*H) 508*455*1137mm 508*455*1393mm 651*631*635mm
Capacity 268L 328L 528L
Type Vertical
Temp. Range -30℃~-40℃ -20~-40℃
Temp. Accuracy 0.1℃
Control System Microprocessor Control

LED Display

Alarm High or low temperature alarm,power failure alarm,door ajar alarm,temperature controllers failure alarm,sensor failure alarm

(of BDF-40V258 without this alarm)

Refrigeration Type Direct Refrigeration
Refrigerant R290 R600a and R290 R290
Compressor Unicompressor,imported famous brand compressor
Material Structure Uniboday design
Internal Sprayed steel plate
External Sprayed steel plate
Drawer/Shelf 3pcs shelves 4pcs shelves 18 drawers
Consumption 300W 340W
Power Supply  AC220V±10%, 50/60HZ; 110V±10%, 60Hz
Package Size 760*760*1750mm 750*760*2030mm 930*970*2000mm
Gross Weight 118kg 132kg 184kg
